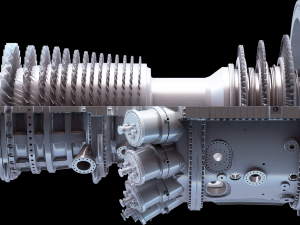

turbine a gaz 9fa general electrique
Modelo 3D

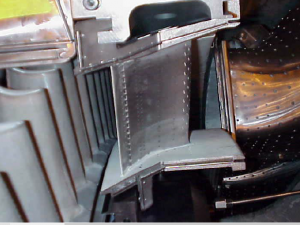

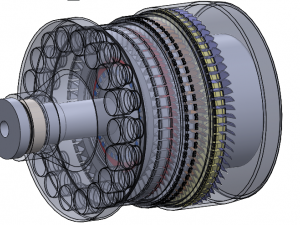

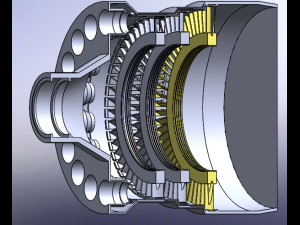

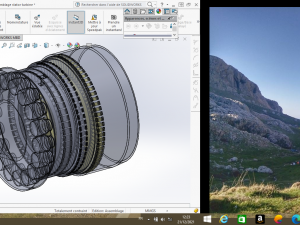

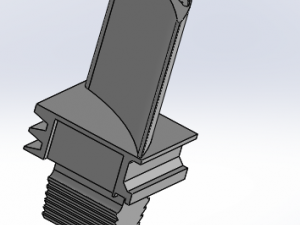

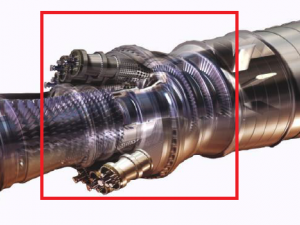

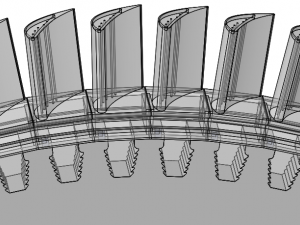

in this model, we realized the geometry of the gas turbine blade using solid works software. this model of the vane is inspired by a real model of a general electric 9fa turbine, this geometry is sufficient to estimate the thermomechanical stresses.
it is a model ready for scientific research, industry, power generation , motorjet design.....

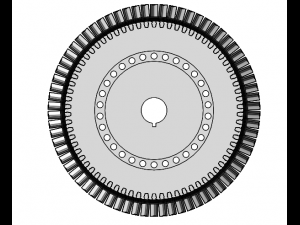

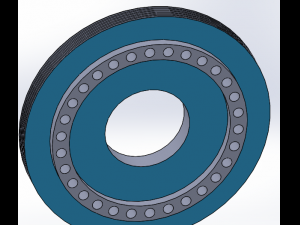

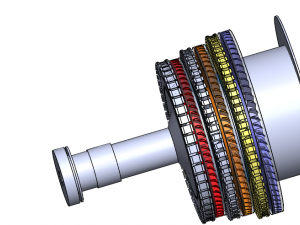

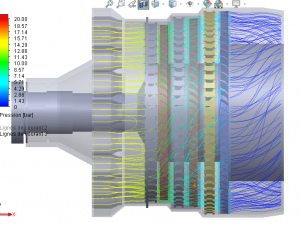

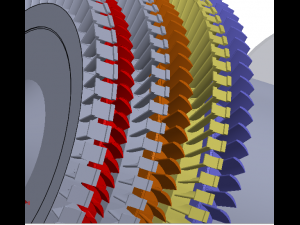

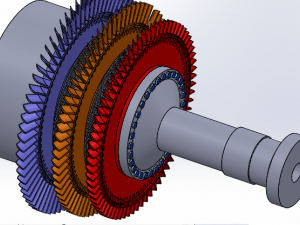

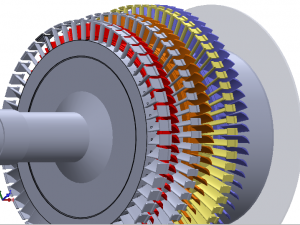

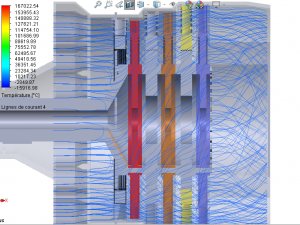

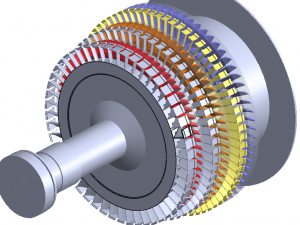

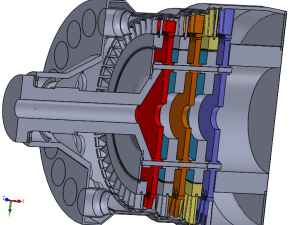

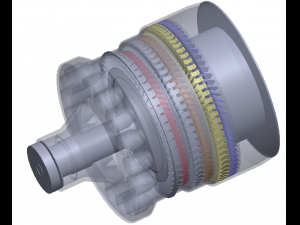

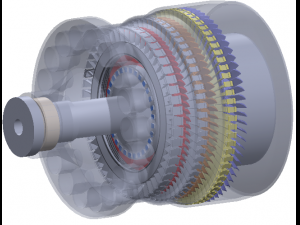

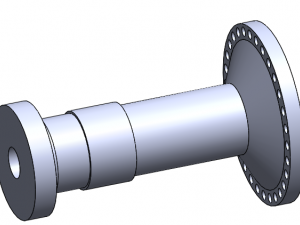

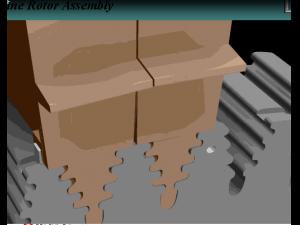

to better see the influence of temperature and pressure of the fluid on the dawn. we have made the three stages of the turbine made up of the rotor and the stator, we made a rotor assembly made up of three impeller of the turbine with these blades,

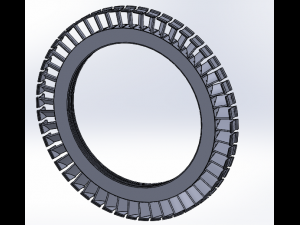

the stator made up of the guide vanes which guide the fluid towards the blade face which will rotate at a speed of 3000 rpm.
for the fluid inlet to the turbine we modeled 18 harsh combustion chamber data on the general eclectic 9fa turbine

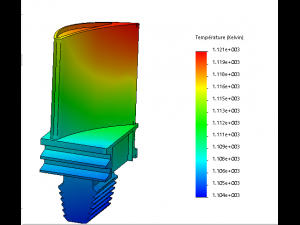

in the static analysis only the vane part is shown when examining the results.

more information my email m.siaghi@esti-annaba.dz Listo para Imprimir: No
