radio test line equipment Modelo 3D

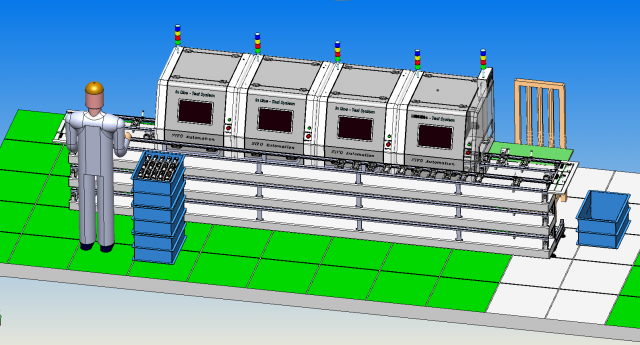

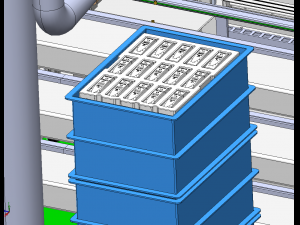

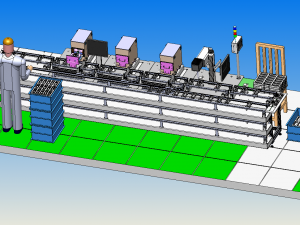

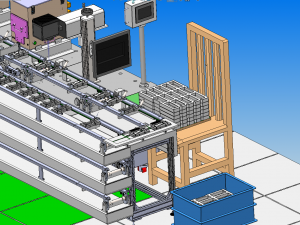

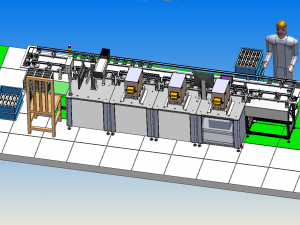

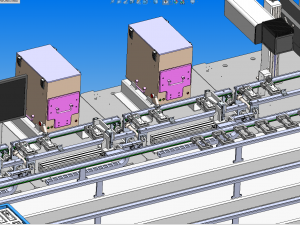

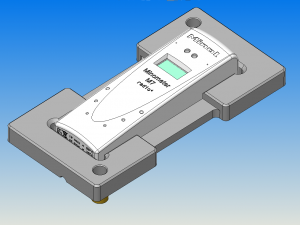

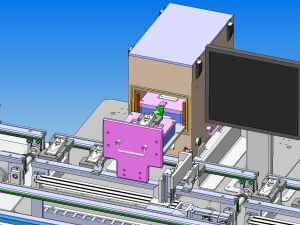

radio test line equipment is to replace the manual loading and unloading action in the process of m8 radio test with conveyor line + automatic mechanism, so as to implement the automatic operation of m8 radio test station, save labor, improve efficiency and reduce the floor area of production line. the m8 radio product is transported to the fixed area in front of the measuring station through the transfer material box, and is manually loaded: the product is put into the tray of the conveyor line, and the tray carries the product temporarily for temporary storage on the line for 1 hour. (the tray is designed with the function of preventing the product from being placed backward), after the pallets are transported out of the temporary storage area, they are detected by step1, step2 and step3, laser engraving by step4, and manual barcode pasting by step5. at the same time, the pallets are collected and put into the empty tray corresponding to pass and fail. infrared code reading should be carried out in all five stations of the test line. Listo para Imprimir: No
