mask machine m1600 melt blown cloth production line Modelo 3D

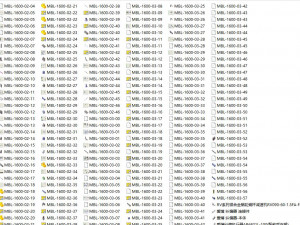

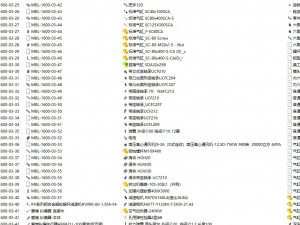

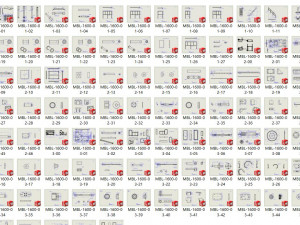

one meter six meltblown cloth production line complete set of drawings

1. dust free workshop or workshop meeting the national standard of production materials

2. product name: melt blown filter material, mask filter material

3. mfi = 1200 ~ 1800 polypropylene raw material

4. product specification width: 1600mm

5. weight range: 10-80g / m2

6. production capacity: 80kg / h-120kg / h

(the weight of the product is more than 75g / m2, and the width is 1600mm)

7. maximum mechanical speed 50m / min

8. fiber fineness 2-5 μ m

9. the installed power is about 500kw

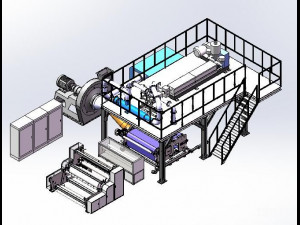

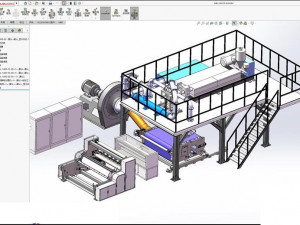

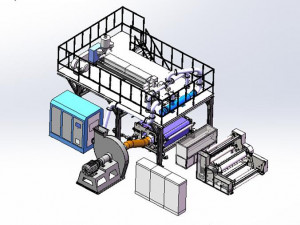

polypropylene is the main raw material for the function and production of melt blown cloth. the diameter of fiber can reach 1-5 μ m. these microfibers with unique capillary structure increase the number and surface area of fibers per unit area, so that the meltblown cloth has good filtration, shielding, thermal insulation and oil absorption. it can be used in air, liquid filter material, isolation material, absorbing material, mask material, heat preservation material, oil absorbing material and wiping cloth. the 3d model drawing of this set of production equipment includes all production line units, including melt blown die head spinning box structure. except screw extruder, roots blower and air heating box as standard equipment, assembly drawings of assembly parts are available for other components Listo para Imprimir: No
