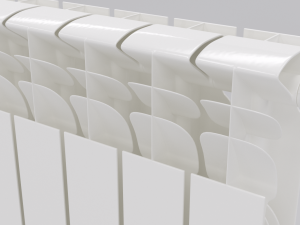

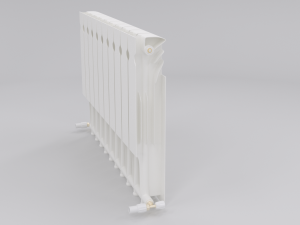

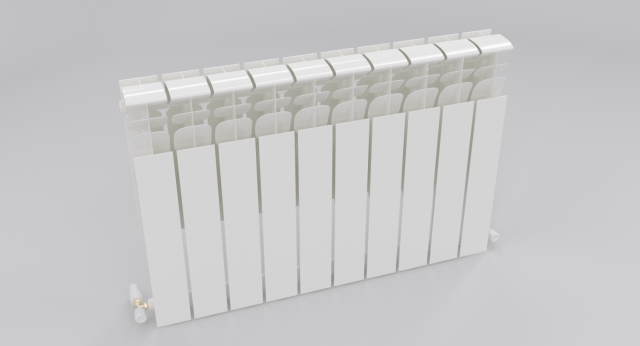

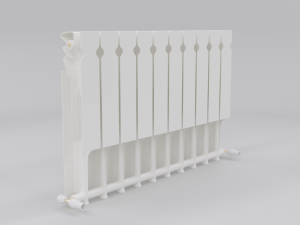

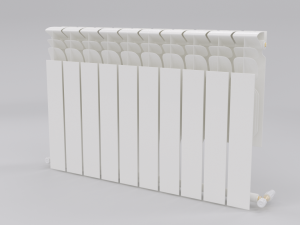

heater radiator Modelo 3D

heater radiator apriori.
*********************************
* scene is in real world scale and metric units with millimeters is used.
* material: aluminium, color: ral 9016
* pivot points of faucet parts are located on the link centers and so can be rotated and opened/closed easily.
* dimensions: length: 925mm, width: 135,5mm, height: 564mm.
section: length: 84mm, width: 98mm, height: 564mm

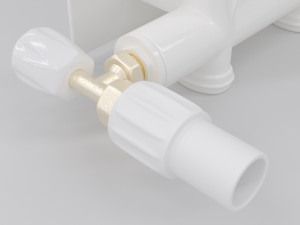

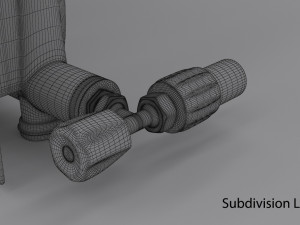

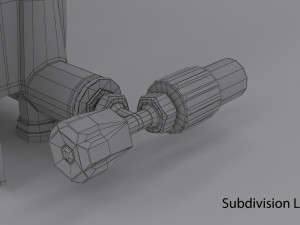

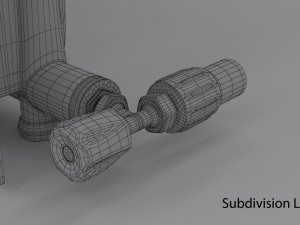

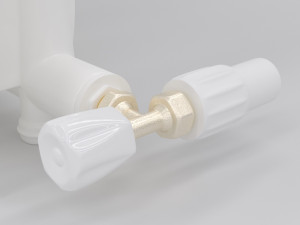

whater valve: length: 40mm, width: 117,6mm, height: 29mm

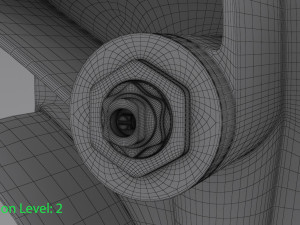

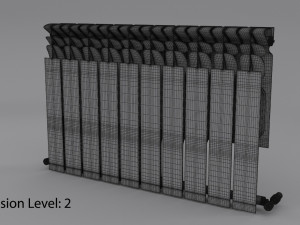

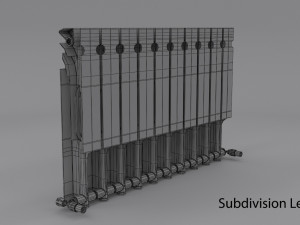

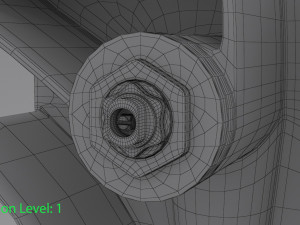

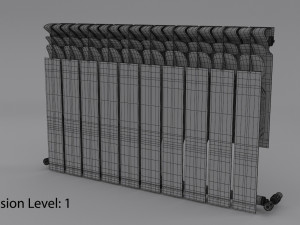

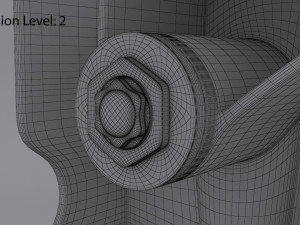

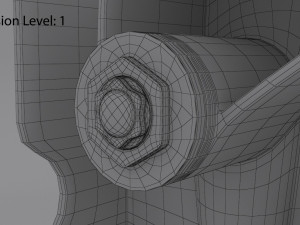

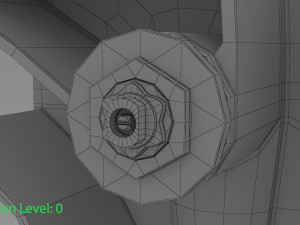

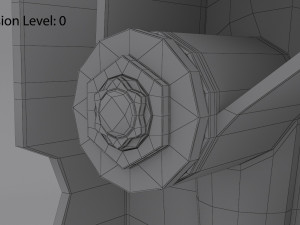

* everything is polygonal and quads only.

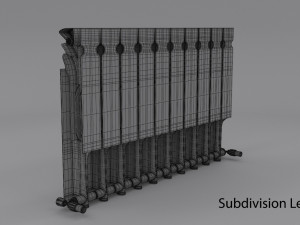

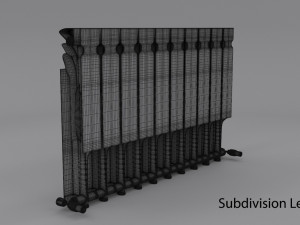

* model has 58782 polys and 29383 verts unsmoothed.
section has 4828 polys and 29383 verts unsmoothed.
* all materials are included and mapped in every format.
* 3ds max models are grouped for easy selection, and objects are logically named for ease of scene management.
* no part-name confusion when importing several models into a scene.
* no cleaning up necessary just drop your models into the scene and start rendering.
* no special plugin needed to open scene.
* model does not include any backgrounds, lights or scenes used in preview images.

as it can be seen in the presentation animation;
section are cloned and they can be reduced or added easily by moving objects.
example: to reduce or add 3 column, objects on the left or right should be moved.

***********
consist:
16 objects:
* 10 sections;
* 2 reducing bushings
* 2 whater valves

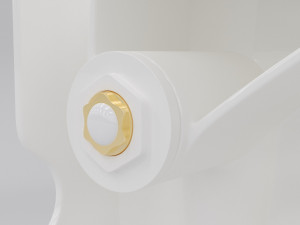

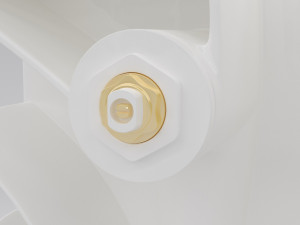

* 2 air vetns
objects are grouped as 'heater_radiator_apriori'. turbosmooth modifier is applied on the group.

*********************************
file formats:
- 3ds max 2017 v-ray and standard materials scenes
- 3ds max 2016 v-ray and standard materials scenes
- 3ds max 2015 v-ray and standard materials scenes
- 3ds max 2014 v-ray and standard materials scenes
- obj (multi format)
- 3ds (multi format)
- fbx
- dwg (auto cad 2013) Listo para Imprimir: No
