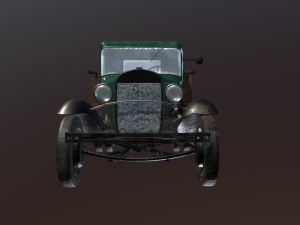

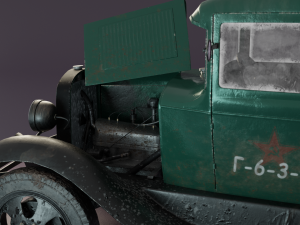

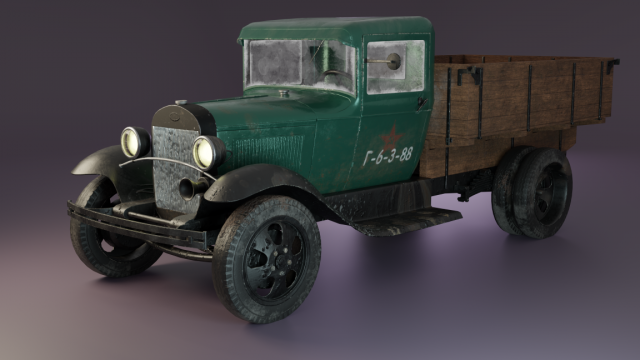

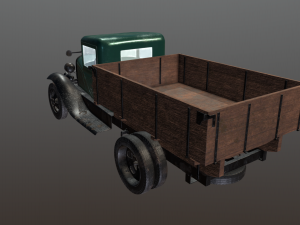

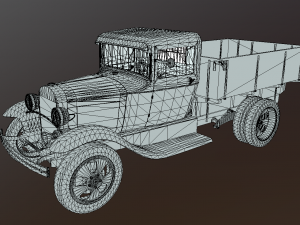

gaz-aa Modelo 3D

soviet cargo truck since 1932. the gaz-aa is a license-built version of fordd model aa by gaz 1932–1942. it had a four cylinder, 40 hp engine and could reach a top speed of 70 km/h on roads. this workhorse was placed into a variety of roles by the red army including supply hauling, troop transport, ambulance, fueling, and was also converted to mount either the 25-mm aa or quadruple maxim machine years of production: 1932 - (1938) - 1942 - 1943 - 1944 - 1946, (26 x 1947 - 1950 - uaz)

4x2 1500 kg truck

overall amount: more than 1 million units engine: 40hp/2200rpm, 4-cyl, carburettor, 4-stroke, 3285cc bore/stroke : 98.43/107.95mm compression rate: 4.2:1 gearbox: 4 speeds + 1 rear length: 5335mm; width: 2040mm; height: 1970mm inner platform dimensions: 2450mm x 1870mm wheelbase: 3340mm , rear axis clearance: 200mm clutch: single disk, dry mechanical brakes tyres: 6.50-20 inches. fuel capacity: 40 l weight: 1810 kg maximal speed (highway, loaded): 70 km/h fuel consumption: 20.5 l/100km Listo para Imprimir: No
