DIY Drawings for Tube and Profile Bender Modelo 3D

INTRODUCTION :
Drawings for making a Tube and Profile Bender:

By definition a tube bender is a tool used to make bends and bends in metal tubes. They are specific machines capable of handling metals, and of applying sufficient tension to avoid damaging a part and prevent it from breaking.

They work by squeezing the flat sheet between two vertically opposed rollers while the third, compensating roller or bending roller moves upwards to make contact with the sheet and then bend it.

This type of manual or motorised roller tube and profile bender is widely used in the boiler, shipbuilding, chemical, structural steel, ornamental ironwork and machinery manufacturing industries.

The 3-roller bending machine generally takes two lower rollers as active roller and one upper roller can move vertically up and down.

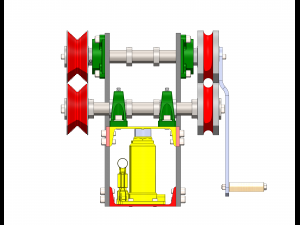

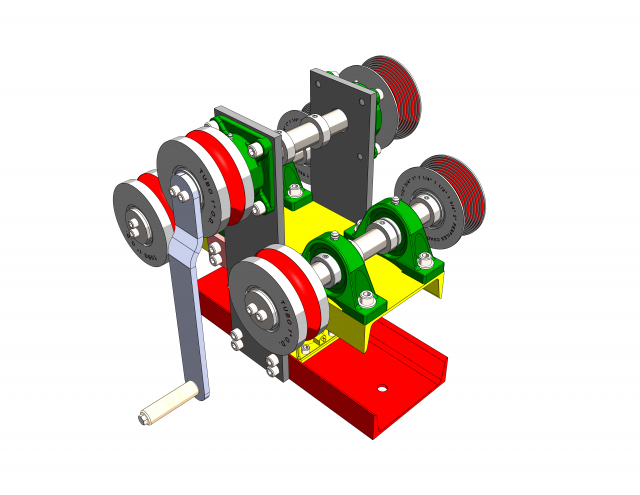

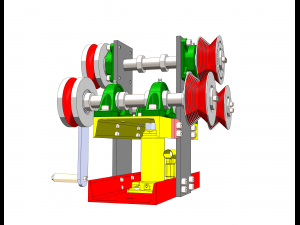

DESCRIPTION:
The design was made in such a way that no welding machine is needed, the Tube and Profile Bending Machine is completely disassembled, and recycled materials can be used. It can also be assembled and disassembled to THE TABLE or WELDING BENCH, as its base has 2 5/8" holes that match the holes in the table.

DIMENSIONS:
49 cm long x 50 cm wide x 50 cm high.

FEATURES:
The bending capacity for rectangular and square profiles is for thicknesses up to 3/8" (10mm). The bending capacity for round tubes depends on the bending diameter of the rollers.

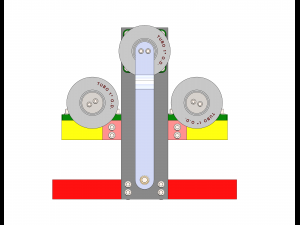

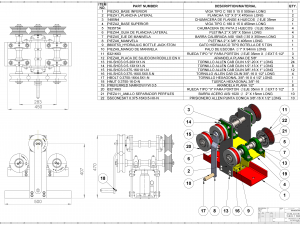

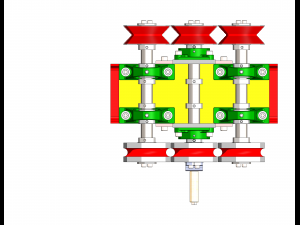

PARTS USED:
2 x 180° C-type channel beams)
3 roller shafts with a diameter of 35 mm
2 flange bearings for the upper roller
2 flange bearings for the lower rollers
2 pieces of 10 mm thick metal
2 3 V-bends for bending round tubes
1/2" NC cylinder head screws
3/8" NC cylinder head screws
Other metal parts.

TOOLS USED
- Pedestal Drill
- Set of bits and taps for threading
- Center Point
- Reamer
- Hammer
- Hand Pliers
- Pressure Pliers
- Hand Grinder, Cutting and Grinding Discs
- Square and straightedge
- Allen Wrench Set
- Caliper Feeler
