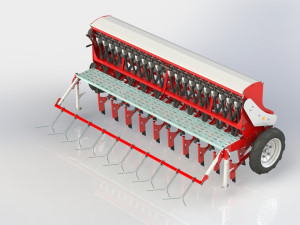

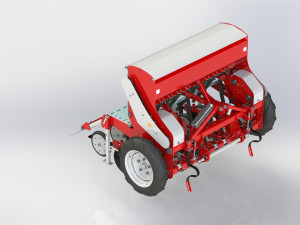

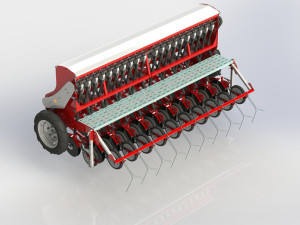

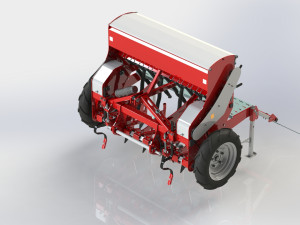

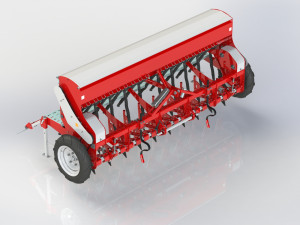

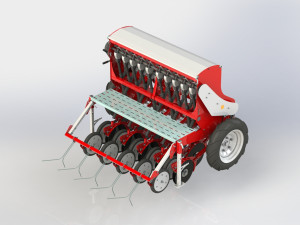

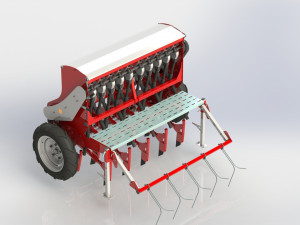

WG 1022 - Mounted mechanical seed drill Modelo 3D

The mounted mechanical seed drill of WG 1022 is intended for sowing of grain crops with a possibility of simultaneous entering of dry fertilizers.

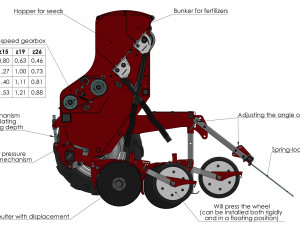

A mechanical reducer is used to change the rotation speed of seeding machines.
Developed for small and mini tractors.
May have a disc or anchor coulter.
Adjustment of sowing depth - using screws.
The coulter battery is mounted on rubber dampers.

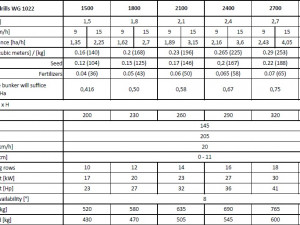

This lot consists of 6 drills with a width of capture from 1,5 to 3,0 meters (1500, 1800, 2100, 2400, 2700, 3000 mm)

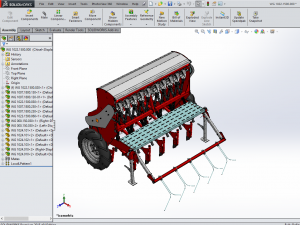

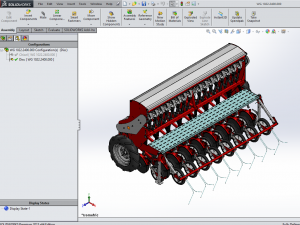

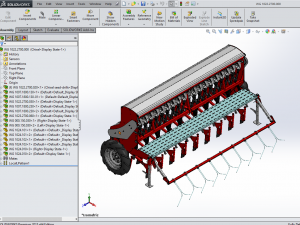

This is full solidworks model. All sizes and parts are executable and buildable
Can be used to import games, videos, 3D printing and more. No textures.

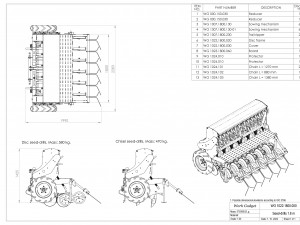

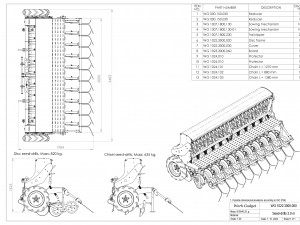

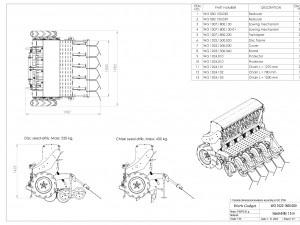

Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production!
This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2015.

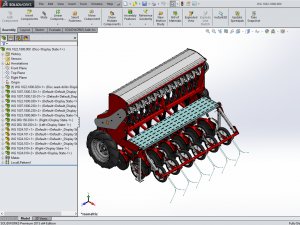

Modeled in SolidWorks 2015. The model contains the most popular formats:
SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE)
Parasolid Binary: *.x_t *.x_b
IGES: *.iges *.igs
STEP: *.step *.stp
Stereolithography: *.stl

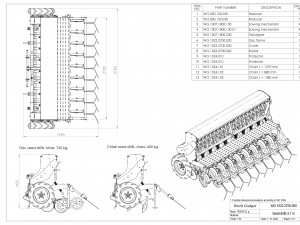

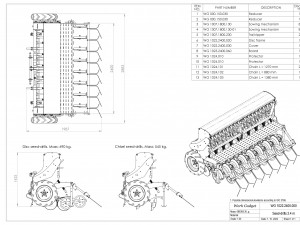

All CAD Drawings are saved in format *.PDF
Programs for plasma (laser) saved in the format: *.DXF Listo para Imprimir: No
